Tripp Lite UPS Smart 550VA 300W Battery Back Up Tower AVR 120V USB RJ11 (smart550usb)

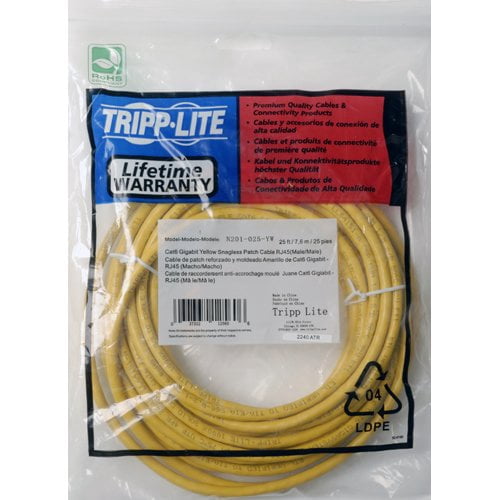

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are av

Line interactive UPS system offers voltage regulation, surge suppression and long-lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. A USB port (cable included) provides power management and unattended shutdown when used with PowerAlert Software (website download). Automatic voltage regulation corrects brownouts as low as 83V. Includes six outlets (three UPS/three surge-only). Built-in, single-line RJ11 phone suppression jacks protect modem, fax machine, cordless phone or other peripheral with a standard dialup/DSL phone connection. Offers 4 minute battery runtime with a full load of 550VA/300 watts and 15 minutes with a half load of 275VA/150 watts.

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacles: 3 x NEMA 5-15R
Dataline Protection: RJ-11
Protection Type: Surge
Cord Length: 6 ft
Transfer Time: 4 ms

Power Description

Load Capacity: 550 VA/300 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 480 J

Management

Alarm: On Battery

Controls/Indicators

Status Indicators: 4 LEDs indicate performance conditions: GREEN "online" / GREEN "voltage regulation enabled" / RED "on battery" / YELLOW "battery low/replace"

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Sealed Lead Acid (SLA)
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 15 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Color: Black
Height: 8.5"
Width: 5"
Depth: 6.5"
Form Factor: Tower
Weight (Approximate): 14.40 lb

Miscellaneous

Package Contents:

• SMART550USB UPS System
• USB and Telephone interconnection cables
• Instruction manual with warranty information

Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (Telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Software Included: PowerAlert Software
Recycled: No
Recycled Content: 0%
Post-consumer-waste%: 0%
Assembly Required: No
Country of Origin: China

Warranty

Limited Warranty: 3 Year

Power rating	550 VA
Run time	4 Minutes
Outlets	6
Brand	Tripp Lite
Watts	300 Watts
Input voltage	120 V
Volts	120 V
Cord length	6'
Dimensions	6.50 x 5.00 x 8.50 Inches
Has written warranty	No
Color	Gray
Weight	15.8 lb
Count	1
Has nrtl listing certification	N
